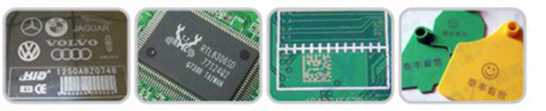

UV Laser Marking can mark on different material, such as glass, plastic, mask, LED, TFT, Textile, Ceramics
| Model | DB3W | DB5W |
| Desk Dimension(L*W*H) | 800*600*750 mm | 800*600*750 mm |
| Total High | 1400mm | 1400mm |
| Laser Power | 3W | 5W |
| Laser Wave Length | 355nm | 355nm |
| Laser quality(m) | <1.8 | <1.8 |
| Marking Speed | ≦15000mm/s | ≦15000mm/s |
| Mininum Letter Wide | 0.01mm | 0.01mm |
| Mininum Letter High | 0.1mm | 0.1mm |
| Cool Type | Inner Water Cooling | Inner Water Cooling |
| Marking Size | 100*100mm (standard) | 100*100mm (standard) |
| Power Required | AC 110V-220V/50-60Hz | AC 110V-220V/50-60Hz |
| Frequency | 20-100KHz | 20-100KHz |
| Power Stability(12H) | <1.5 | <1.5 |
| Work Temperature | -10~50℃ | -10~50℃ |
| Work Humidity | 10-75% | 10-75% |
| Enviroment Requirment | No vibration, No interference source, Ventilation | |
