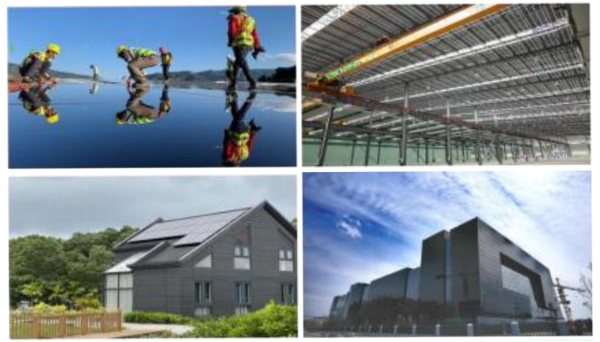

Suitbale for household roofs, factory roofs and facades, ground power stations, parking sheds, bus stops, etc.
| Generated Spec. | Marble Solar Panel | ||||
| Model | COM-M1-290W | COM-M1-280W | COM-M1-270W | COM-M1-260W | COM-M1-250W |
| Power Max(W) | 290 | 280 | 270 | 260 | 250 |
| Power Torlance | ±3 | ±3 | ±3 | ±3 | ±3 |
| Vmpp(V) | 137.2 | 133.1 | 129.3 | 127.5 | 125 |
| Impp(A) | 2.12 | 2.11 | 2.09 | 2.04 | 2 |
| Voc(V) | 179 | 178 | 173.8 | 171.4 | 167 |
| Isc(A) | 2.39 | 2.38 | 2.38 | 2.31 | 2.28 |
| Maximum system voltage | 1500V | ||||
| Reverse Current tolerance threshold | 3.5A | ||||
| Working enviroment Tmp | -40℃~85℃ | ||||
| Maximum load | 2400Pa | ||||
| Protection level | P67 | ||||
| Glass Size(mm) | 1600*1200 mm | ||||
| Glass Thickness (mm) | 6.9mm | ||||
| Glass with Encapsulation material Thickness | 26.9mm（With junction box） | ||||
| Weight(Kg） | 30Kg | ||||
| Wire | 2.5㎟, 1000mm | ||||
| Bypass diode | HY6A10S | ||||
| Product Structure | Glass 3.2mm+3.2mm | ||||
| Front Glass | 3.2mm ultra clear rolled glass | ||||
| Air thickness | - | ||||
| Back glass | 3.2mm Semi-tempered glass glass | ||||
| Temperature Coefficient | |||||
| NMOT | 42.3±2℃ | ||||
| Pmax | -0.189%/℃ | ||||
| Voc | -0.396%/℃ | ||||
| Isc | +0.061%/℃ | ||||
