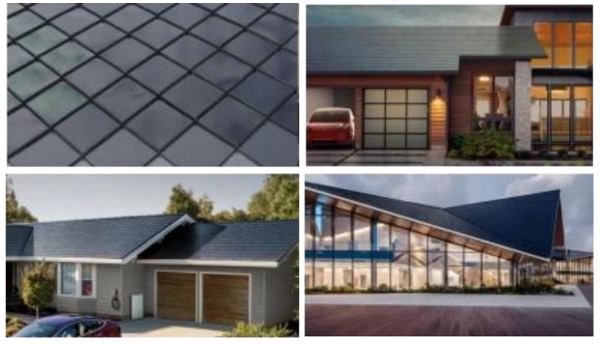

Suitable for roofs, color and size can be customized to meet the needs of different architectural styles.
| Generated Spec. | Tiles Solar Panel | |||
| Model | 1200*400 | 600*400 | 400*400 | 1200*400 Green |
| Power Max(W) | 65 | 32.5 | 21.6 | 52 |
| Power Torlance | ±3 | ±3 | ±3 | ±3 |
| Vmpp(V) | 31.87 | 31.87 | 31.87 | 31.87 |
| Impp(A) | 2.04 | 1.02 | 0.68 | 1.63 |
| Voc(V) | 42.6 | 43.6 | 44.6 | 45.6 |
| Isc(A) | 2.31 | 1.15 | 0.73 | 1.71 |
| Maximum system voltage | 1000V | |||
| Reverse Current tolerance threshold | 3.5A/ 1.7A/ 1.1A/2.6A | |||
| Working enviroment Tmp | -40℃~85℃ | |||
| Maximum load | 2400Pa/5400Pa | |||
| Protection level | P67 | |||
| Glass Size(mm) | 1200*400mm/ 600*400mm/ 400*400mm | |||
| Glass Thickness (mm) | 17mm | |||
| Glass with Encapsulation material Thickness | 37mm（With junction box） | |||
| Weight(Kg） | 7.5/ 3.75/ 2.5 kg | |||
| Wire | 2.5㎟, 1000mm | |||
| Bypass diode | HY6A10S | |||
| Product Structure | Glass 6mm+3.2mm+6mm | |||
| Front Glass | 6mm ultra clear rolled glass | |||
| Air thickness | - | |||
| Back glass | 6mm white tempered glass | |||
| Temperature Coefficient | ||||
| NMOT | 42.3±2℃ | |||
| Pmax | -0.189%/℃ | |||
| Voc | -0.396%/℃ | |||
| Isc | +0.061%/℃ | |||
