Comparing with traditional argon arc welding, our Laser Swing Welding Machine, more fast(2times than argon arc welding), Much safe, Less Material Consumption(Can Save Much Material Cost), Easy Operating, No need to Polish, can swing welding, Environmental –friendly.
| Model | SC500W | SC1000W | SC1500W |
| Dimension(L*W*H) | 630*1010*1120 mm | 630*1010*1120 mm | 630*1010*1120 mm |
| Laser Power | 500W | 1000W | 1500W |
| Laser Wave Length | 1070±5nm | 1070±5nm | 1070±5nm |
| Work Mode | Continuation/Modulation | Continuation/Modulation | Continuation/Modulation |
| Output Welding Head Type | Hand-held Swing Head +Welding Head | Hand-held Swing Head +Welding Head | Hand-held Swing Head +Welding Head |
| Stability of Output Power | <3% | <3% | <3% |
| Power Regulation Range | 10~100% | 10~100% | 10~100% |
| Welding Thickness (according different material) | 0.5-2.0mm | 0.5-2.5mm | 0.5-3.5mm |
| Cool Type | Inner Water Cooling | Inner Water Cooling | Inner Water Cooling |
| Length of Liber Line | Hand-held Type 10m, Fix Head Type 15m | Hand-held Type 10m, Fix Head Type 15m | Hand-held Type 10m, Fix Head Type 15m |
| Blowing Protection | Argon, Nitrogen | Argon, Nitrogen | Argon, Nitrogen |
| Power Demand | AC 110V-380V/50-60Hz | AC 110V-380V/50-60Hz | AC 110V-380V/50-60Hz |
| Equipment Power | 3.5KW | 4.5KW | 5.5KW |
| Covers Area | 1*1.6m | 1*1.6m | 1*1.6m |
| Weight | 180KG | 200KG | 200KG |
| Work Temperature | -10~50℃ | -10~50℃ | -10~50℃ |
| Work Humidity | 10-75% | 10-75% | 10-75% |
| Enviroment Requirment | No vibration, No interference source, Ventilation | ||
| Consumables | Purer Water, Argon | Purer Water, Argon | Purer Water, Argon |

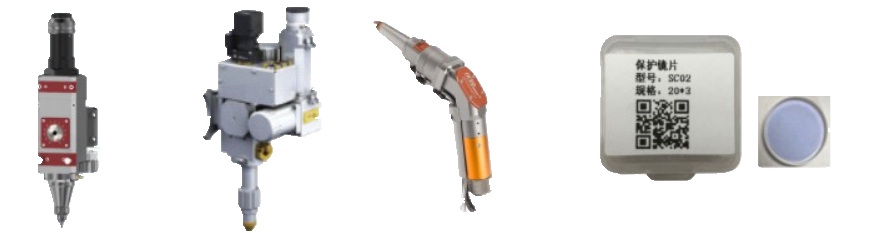

Laser Accessories
External Modules:
| Compare with traditional argon arc welding | ||
| Compare items | Argon Arc Welding | Swing Laser Welding Machine |
| Heat input to workpiece | Very high | Low |
| Deformation and undercut of workpiece | Big | Small |
| The donding strenth with base Metal | Medium | Very Good |
| Follow-up processing | Polish | No need to Polish |
| Welding speed | Medium | Fast Speed 2 times of argon arc welding |
| Applicable materials | Stainless Steel, Aluminum, Iron, Copper | Stainless Steel, Aluminum, Iron, Copper |
| Consumables | More Material Consumption | Less Material Consumption |
| Difficulty in operating | Complex | Easy |
| Safety to operator | Not Safe | Safe |
| Effect to environment | Not Enviormental | Environmental-friendly |
| Welding fault tolerance | Normal | Very Good |
| Swing welding | No | Yes |
| Spot width adjustable | No | Yes |
| Welding quality compare | Bad | Very good |
