Certificate: TUV, CE, EMC, CQC, 3C Tansmittance: 0~60%

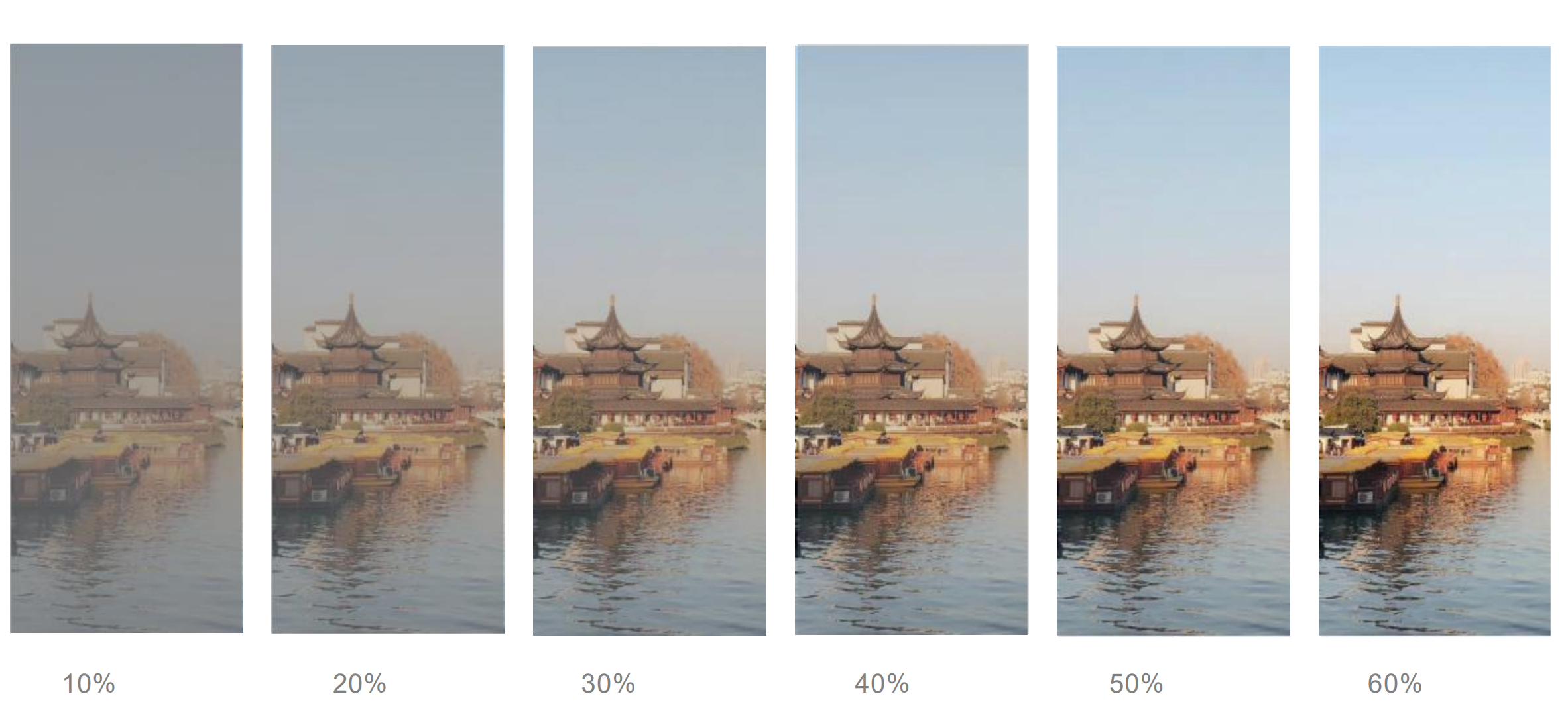

Suitable for building curtain walls, casement windows, skylights, etc., with adjustable light transmittance of 0~60%.
Heat insulation, sound insulation and noise reduction
| Generated Spec. | Hollow Solar Panel | |||
| Model | COM-Z3-T20 | COM-Z3- T30 | COM-Z3-T40 | COM-Z3-50 |
| Power Max(W) | 210 | 180 | 160 | 130 |
| Power Torlance | ±3 | ±3 | ±3 | ±3 |
| Vmpp(V) | 129.3 | 129.3 | 129.3 | 129.3 |
| Impp(A) | 1.67 | 1.46 | 1.25 | 1.04 |
| Voc(V) | 173.8 | 173.8 | 173.8 | 173.8 |
| Isc(A) | 1.9 | 1.66 | 1.42 | 1.5 |
| Maximum system voltage | 1500V | |||
| Reverse Current tolerance threshold | T20-3A/T30-2.7A/T40-2.3A/T50-1.9A | |||
| Working enviroment Tmp | -40℃~85℃ | |||
| Maximum load | 2400Pa/5400P | |||
| Protection level | P67 | |||
| Glass Size(mm) | 1600*1200 mm | |||
| Glass Thickness (mm) | 28mm | |||
| Glass with Encapsulation material Thickness | 45.3mm（With junction box） | |||
| Weight(Kg） | 75kg | |||
| Wire | 2.5㎟, 900mm | |||
| Bypass diode | HY6A10S | |||
| Product Structure | 3.2mm+ 6mm+12mm(air)+6mm(LOW-E) | |||
| Front Glass | 6mm ultra clear rolled glass | |||
| Air thickness | 12mm(air) | |||
| Back glass | 6mm white tempered glass | |||
| Temperature Coefficient | ||||
| NMOT | 42.3±2℃ | |||
| Pmax | -0.189%/℃ | |||
| Voc | -0.396%/℃ | |||
| Isc | +0.061%/℃ | |||
